Catheter Lamination Equipment

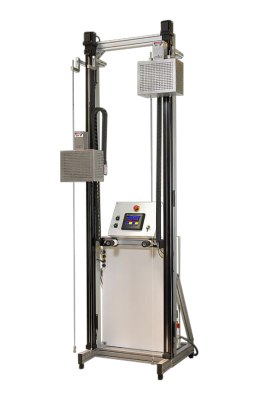

The EBD 311 Quad Catheter Laminator is the leading solution for fast and efficient shrinkage of catheter tubing. It features two vertical actuators supporting a double-lamination chamber assembly with multiple speed options for stored recipes. The laminator maintains a constant temperature in the lamination chambers and includes a long heating chamber for processing speeds up to 10 times faster than forced air laminators. With improved precision across all controlled parameters, the EBD 311 Quad Catheter Laminator enhances productivity by reducing rejects and accelerating processing speeds.

311 Quad Catheter Laminator

Our 311 Quad Catheter Laminator machine uses recirculated hot air to shrink thermoplastic tubing down to a minimal diameter to produce catheters. The programming is flexible to allow new products to be made with the same machine.

Other Lamination Technology

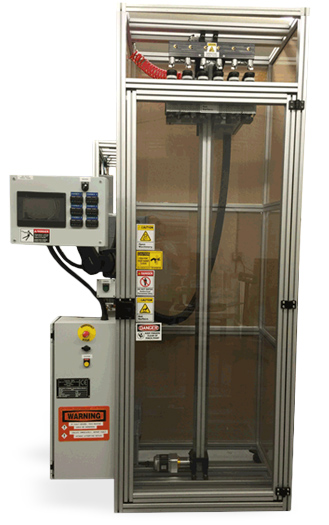

Reflow Chamber

The CT Reflow Chamber machine delivers a strictly controlled and conventional heated chamber while navigating down tubing at a precise and regulated speed. This machine provides high repeatable and uniform laminations of medium to long-length catheter shafts.

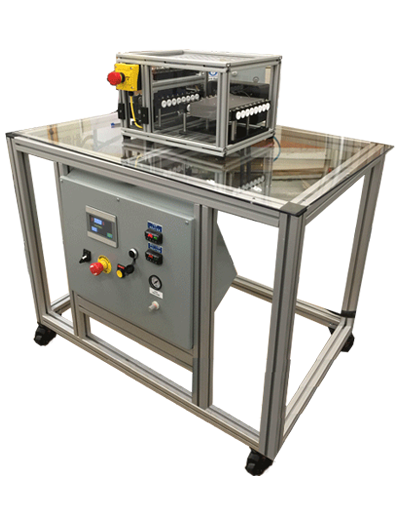

Reflow Roller

The CATH-TECH reflow roller boasts eight (8) chambers that continuously feed the product, and enable a quick transition between loads by the operator. This easy to control, compact machine is not suitable for micro wall systems less than two thousandths of an inch.

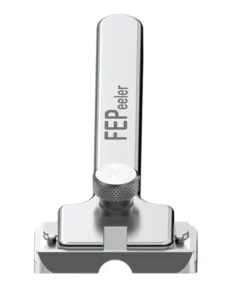

FePeeler Skivers

MMT’s FEPeeler Skivers offer precise control and flexibility, providing a practical and cost-effective solution.

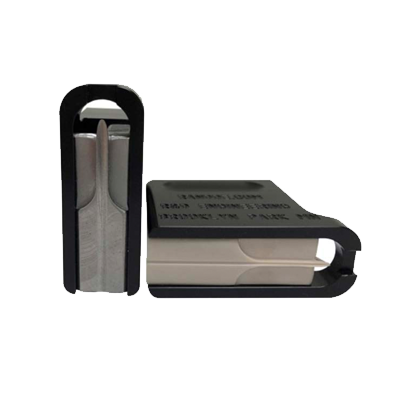

CT Skivers

The CT Skiver is a customized tool that cuts between the catheter tubing and applied heat shrink layers and separates them, removing the heat shrink material.
